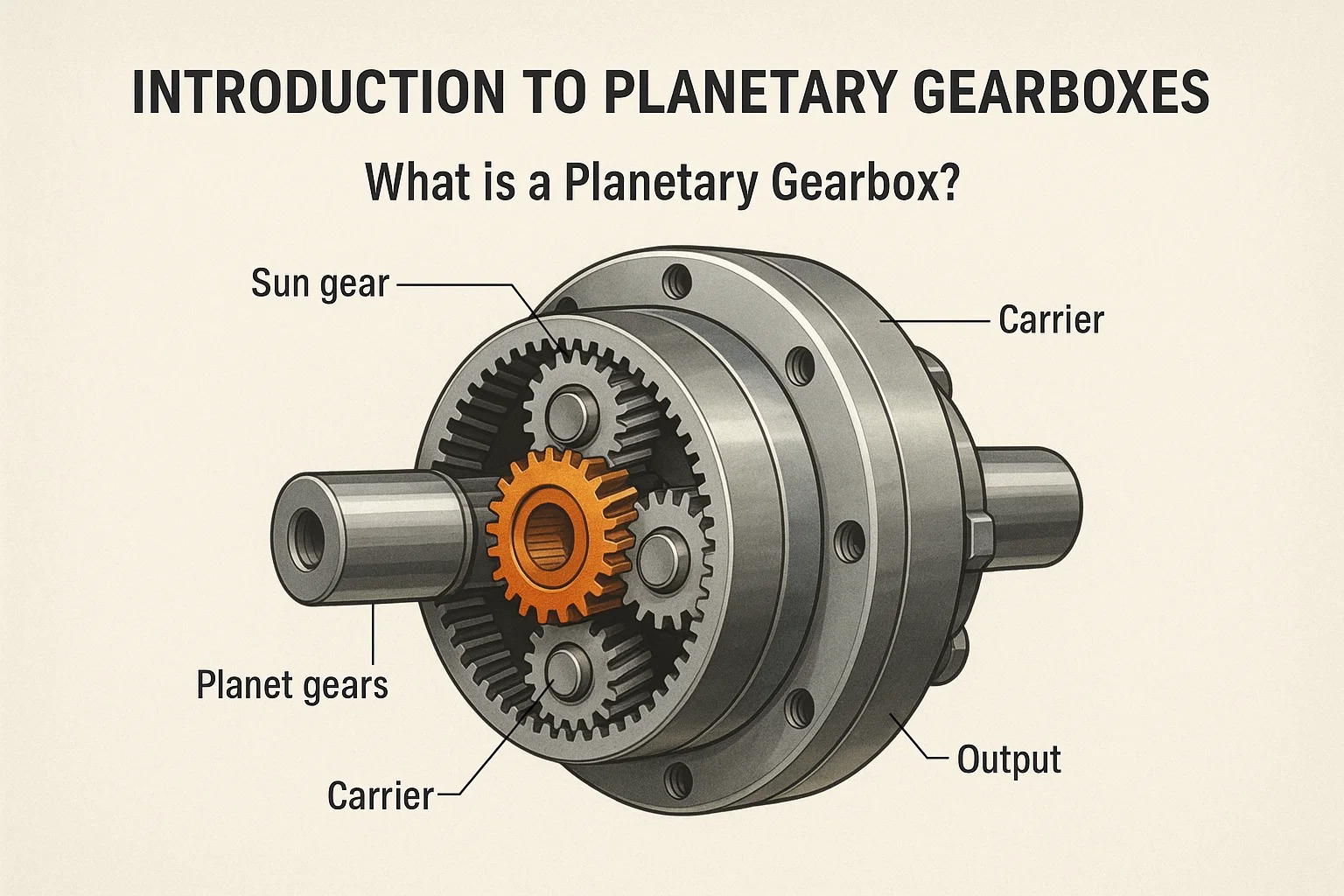

I. Introduction to Planetary Gearboxes

1. What is a Planetary Gearbox?

A planetary gearbox, also known as an epicyclic gearbox, is a sophisticated gear system characterized by its unique arrangement of gears. Unlike traditional parallel shaft gearboxes, a planetary gearbox consists of a central "sun" gear, an outer "ring" gear (internal gear), and several "planet" gears that revolve around the sun gear while meshing with both the sun and the ring gear. These planet gears are typically mounted on a movable "carrier," which dictates their orbital motion. This concentric arrangement allows for the efficient distribution of load among multiple gears, leading to exceptional performance characteristics. The primary function of a planetary gearbox is to provide significant torque multiplication and speed reduction in a remarkably compact space.

2. Brief history and evolution

The fundamental principles behind epicyclic gearing can be traced back to ancient times, with early applications found in astronomical clocks and other intricate mechanical devices. However, the modern planetary gearbox, as we know it today, began to take shape with the advent of industrialization and the increasing demand for powerful yet compact power transmission solutions.

Early planetary gear designs were often complex to manufacture and prone to issues related to load distribution and wear. Significant advancements in materials science, precision machining, and gear geometry have led to the highly efficient, reliable, and durable planetary gearboxes available today. The evolution has seen a shift from rudimentary designs to highly engineered systems capable of handling immense torque, operating at high speeds, and enduring harsh environmental conditions. The development of advanced lubricants and sealing technologies has further enhanced their performance and lifespan. Today, computer-aided design (CAD) and finite element analysis (FEA) play crucial roles in optimizing planetary gearbox designs for specific applications, pushing the boundaries of their capabilities.

3. Advantages of Planetary Gearboxes

Planetary gearboxes offer a compelling set of advantages that make them a preferred choice across a wide spectrum of industries. Their unique design inherently provides several key benefits:

• High Torque Density: Perhaps the most significant advantage is their ability to transmit very high torque within a relatively small volume. This is due to the load-sharing capabilities among multiple planet gears, effectively multiplying the contact area and distributing stress.
• Compact Size: The concentric arrangement of gears allows for a very compact and space-saving design. This is crucial in applications where space is at a premium, such as robotics, aerospace, and portable machinery.
• High Efficiency: Planetary gearboxes are renowned for their high power transmission efficiency, often exceeding 95% in a single stage. This is attributed to the pure rolling contact between the gear teeth, which minimizes friction losses compared to other gear arrangements.
• Excellent Positional Accuracy and Rigidity: The balanced load distribution and rigid construction of planetary gearboxes contribute to minimal backlash (the play between meshing gears) and high torsional stiffness. This makes them ideal for applications requiring precise motion control, such as industrial automation and robotics.
• Low Noise and Vibration: The multiple points of contact and balanced rotating components in a planetary gearbox lead to smoother operation and reduced noise and vibration levels compared to conventional gearboxes.
• Versatile Gear Ratios: By varying the number of teeth on the sun, planet, and ring gears, and by stacking multiple stages, a wide range of reduction ratios can be achieved, catering to diverse application requirements.
• Coaxial Shaft Arrangement: Both the input and output shafts are typically coaxial, simplifying machine design and integration. This eliminates the need for offset shafts and associated mounting complexities.
• Durability and Long Lifespan: With proper lubrication and maintenance, the robust design and load-sharing capabilities of planetary gearboxes contribute to a long operational lifespan, even under demanding conditions.

These advantages collectively make planetary gearboxes an indispensable component in numerous modern mechanical systems, driving innovation and efficiency across industries.

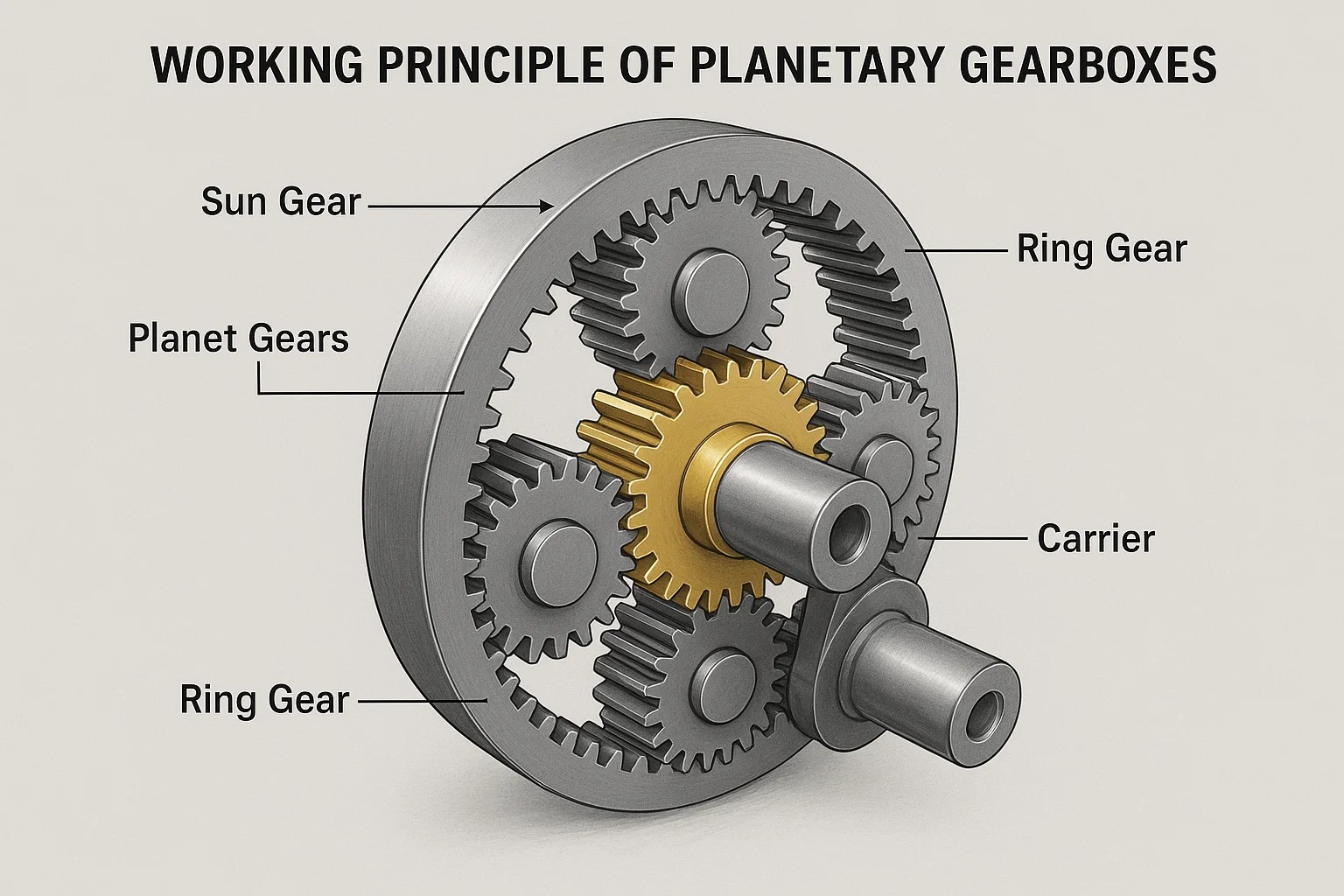

II. Working Principle of Planetary Gearboxes

The remarkable performance of a planetary gearbox stems from its ingenious internal configuration and the way its components interact. Understanding this mechanism is key to appreciating its widespread utility.

1. Components: Sun Gear, Planet Gears, Ring Gear, Carrier

A typical planetary gearbox, in its most basic form, comprises four fundamental components, each playing a critical role in the power transmission process:

• Sun Gear: This is the central gear, analogous to the sun in our solar system (hence the name "planetary"). It is usually the input gear in a speed reduction configuration, or the output gear in a speed increasing configuration. It meshes externally with the planet gears.
• Planet Gears: These are typically two or more gears that orbit around the central sun gear. They mesh with both the sun gear and the internal teeth of the ring gear. The planet gears are responsible for distributing the load and transmitting power from the sun gear to the ring gear or carrier, or vice-versa. The number of planet gears affects the load-carrying capacity and balance of the system.
• Ring Gear (Annulus Gear / Internal Gear): This is an outer gear with internal teeth that mesh with the planet gears. It encapsulates the sun and planet gears. The ring gear can be stationary, acting as a reaction member, or it can be driven or provide the output. Its internal teeth provide a stable and robust contact surface for the planet gears.
• Carrier (Planet Carrier / Arm): This is a structural component that holds the planet gears in place and maintains their spacing around the sun gear. The planet gears are typically mounted on shafts that are fixed to the carrier, allowing them to rotate on their own axes while simultaneously revolving around the sun gear. The carrier can serve as the input, output, or a stationary component, depending on the desired kinematic configuration.

This unique, coaxial arrangement of gears allows the entire gear train to be housed within a compact cylindrical casing, which is a major design advantage.

2. How the gears interact

The interaction of these four components determines the gearbox's speed reduction, torque multiplication, and direction of rotation. The operational principle relies on fixing one of the three main rotating components (sun, carrier, or ring gear) and then using another as input and the third as output.

Let's consider the most common configuration for speed reduction:

• Input: The Sun Gear is typically driven by a motor.
• Stationary: The Ring Gear is held fixed (prevented from rotating).
• Output: The Carrier becomes the output shaft.

In this setup:

1. As the sun gear rotates, it drives the meshing planet gears.
2. Since the planet gears are also meshing with the stationary ring gear, they are forced to "walk" or roll along the inside of the ring gear.
3. This rolling motion causes the planet gears to orbit around the sun gear, carrying their supporting carrier with them.
4. Because the planet gears are rolling and orbiting, the carrier rotates at a much slower speed than the input sun gear, effectively reducing the speed and multiplying the torque.

Other configurations are possible:

• Fixed Carrier: If the carrier is held stationary, the system acts as a standard gear reduction where the sun drives the planets, which then drive the ring gear. This arrangement can be used for speed reduction or increase, often with different output directions.
• Fixed Sun Gear: If the sun gear is held stationary and the ring gear is driven (input), the carrier can become the output, resulting in a different reduction ratio.

The beauty of the planetary design lies in its ability to distribute the load across multiple planet gears. Each planet gear carries a portion of the total torque, leading to:

• Increased Load Capacity: The load is shared, so each gear tooth experiences less stress compared to a conventional gear train where all the load is transmitted through a single mesh point.
• Smoother Operation: Multiple points of contact reduce vibration and noise.
• Greater Efficiency: The pure rolling action between the gears minimizes sliding friction.

3. Gear Ratio Calculation

The gear ratio (i) of a planetary gearbox depends on which components are fixed, input, and output, as well as the number of teeth on the sun gear ( Z s ​ ), ring gear ( Z r ​ ), and planet gears ( Z p ​ ). While the number of planet gears ( N p ​ ) affects load capacity, it does not directly influence the ratio itself.

Let's consider the most common configuration where the Ring Gear is fixed (stationary) , the Sun Gear is the input , and the Carrier is the output .

The formula for the gear ratio (i) in this common configuration (input speed / output speed) is:

i = 1 Z r / Z s

Where:

• Z r ​ = Number of teeth on the Ring Gear
• Z s ​ = Number of teeth on the Sun Gear

Example: If a planetary gearbox has a sun gear with 20 teeth ( Z s ​ = 20 ) and a ring gear with 80 teeth ( Z r ​ = 80 ), and the ring gear is fixed:

i = 1 80/20​ = 1 4 = 5

This means for every 5 rotations of the input sun gear, the output carrier will rotate 1 time. The speed is reduced by a factor of 5, and the torque is multiplied by a factor of 5 (ignoring efficiency losses).

Important Notes on Gear Ratio:

• For multi-stage planetary gearboxes, the overall gear ratio is the product of the individual ratios of each stage. For instance, if you have two stages, each with a ratio of 5:1, the total ratio would be 5 × 5 = 25 : 1 .
• Other configurations (e.g., fixed sun, input ring, output carrier) have different ratio formulas. The general formula, derived using the Willis equation, is a powerful tool for calculating ratios in all epicyclic gear trains.

Understanding these fundamental components and their dynamic interaction is crucial for both the design and selection of planetary gearboxes for specific applications.

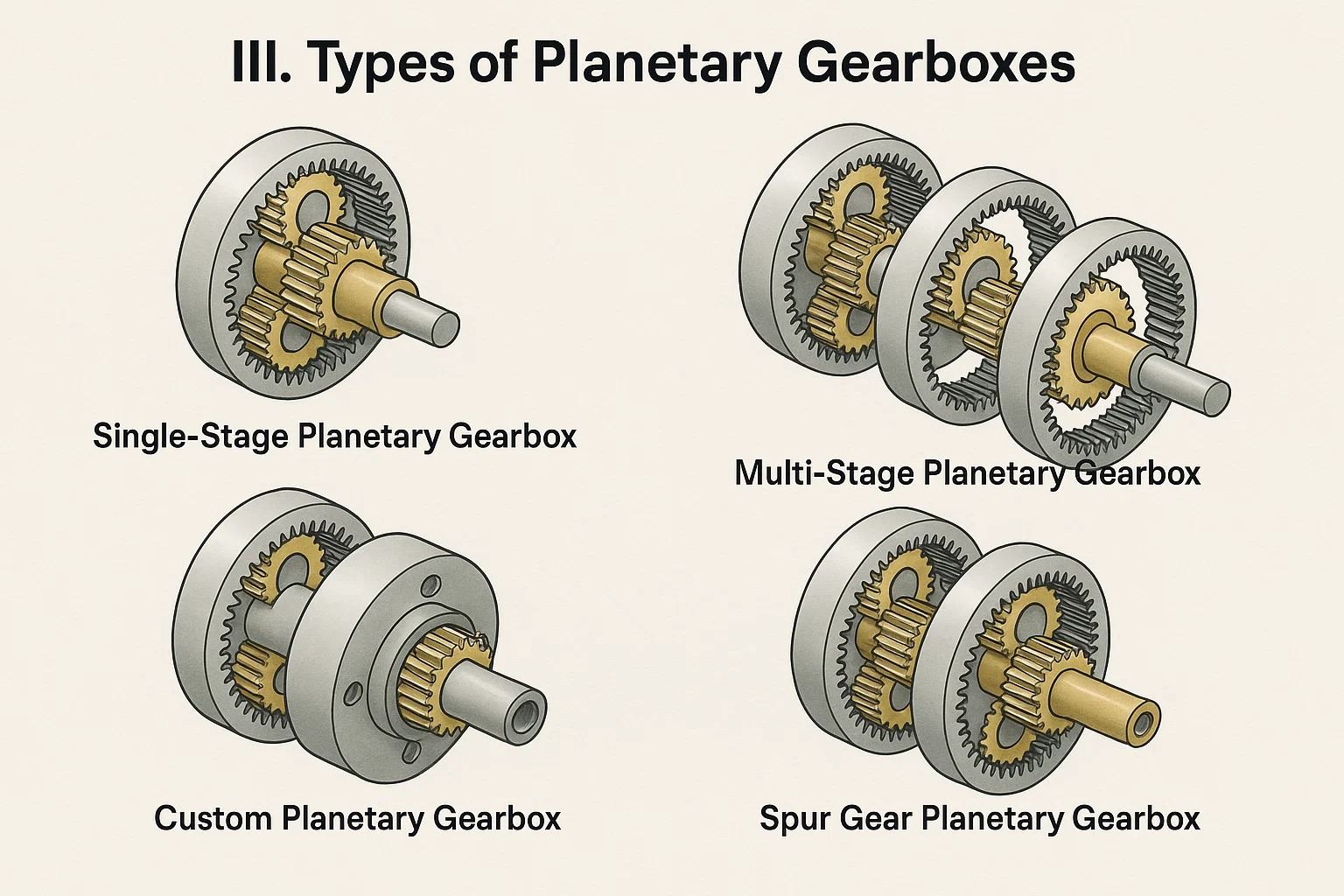

III. Types of Planetary Gearboxes

While the fundamental components of a planetary gearbox remain consistent (sun, planet, ring, carrier), variations in their arrangement, the number of stages, and the type of gears used lead to different configurations, each optimized for specific performance characteristics and applications.

1. Single-Stage Planetary Gearboxes

A single-stage planetary gearbox is the simplest form, comprising one set of sun, planet, and ring gears with their corresponding carrier.

• Structure: It consists of one central sun gear, several planet gears meshing with the sun, a planet carrier holding the planet gears, and an outer ring gear meshing with the planets.
• Operation: Power is typically input through the sun gear, the ring gear is held stationary, and the output is taken from the carrier (for speed reduction).
• Characteristics:
  • Compactness: Extremely compact for the reduction ratio achieved.
  • Efficiency: Very high efficiency, often exceeding 97% for a single stage.
  • Limited Ratio Range: The maximum practical reduction ratio for a single stage is generally limited (e.g., typically from 3:1 up to about 10:1 or 11:1). Achieving higher ratios in a single stage would require a very small sun gear relative to the ring gear, which can lead to issues with tooth strength and the number of planet gears that can be fitted.
  • Applications: Ideal for applications requiring moderate speed reduction, high torque density, and precise motion control in a small footprint, such as small robotics, servomotor applications, and automated assembly lines.

2. Multi-Stage Planetary Gearboxes

When higher reduction ratios are required, or when a very specific output speed is needed that a single stage cannot provide efficiently, multiple planetary stages are combined in series.

• Structure: A multi-stage planetary gearbox consists of two or more single planetary gear sets connected sequentially. The output carrier of the first stage often acts as the input sun gear for the next stage, or an intermediate shaft connects the stages.
• Operation: The total gear ratio is the product of the individual ratios of each stage. For example, a two-stage gearbox with a 5:1 ratio in the first stage and a 4:1 ratio in the second stage will yield an overall ratio of 20:1.
• Characteristics:
  • High Reduction Ratios: Capable of achieving very high gear ratios (e.g., from 15:1 up to several hundreds or even thousands to one).
  • Increased Length: The overall length of the gearbox increases with the number of stages, though it remains relatively compact compared to multi-stage parallel shaft gearboxes for equivalent ratios.
  • Slightly Reduced Efficiency: While each stage is highly efficient, there is a small efficiency loss with each additional stage. However, the overall efficiency typically remains very high (e.g., 90-95% for multi-stage).
  • Applications: Widely used in heavy industrial machinery, wind turbines, solar tracking systems, large robotics, construction equipment, and anywhere very high torque and low output speeds are needed in a relatively compact form factor.

3. Custom Planetary Gearboxes

Beyond standard off-the-shelf units, custom planetary gearboxes are designed and manufactured to meet highly specific and often unique application requirements that cannot be fulfilled by readily available solutions.

• Design Considerations: Customization can involve:
  • Specific Gear Ratios: Non-standard or extremely high/low ratios.
  • Materials: Use of specialized materials for extreme temperatures, corrosive environments, or weight reduction (e.g., aerospace applications).
  • Sealing and Lubrication: Solutions for vacuum environments, food-grade requirements, or high-pressure applications.
  • Mounting and Integration: Unique flange designs, shaft configurations (hollow shaft, splined shaft, integrated motor), or housing shapes to fit into constrained spaces.
  • Backlash: Ultra-low backlash requirements for precision motion control.
  • Noise/Vibration: Design modifications for extremely quiet operation.
  • Duty Cycle & Life: Engineered for exceptionally long life or specific load cycles.
• Benefits: Precisely optimized performance for the intended application, often leading to improved system efficiency, reliability, and longevity.
• Applications: High-precision scientific instruments, defense applications, specialized aerospace systems, bespoke automated machinery, medical devices, and niche industrial equipment where standard solutions are insufficient.

4. Spur Gear Planetary Gearboxes

This classification refers to the type of teeth used on the sun, planet, and ring gears. Spur gears are the most common and fundamental type of gear.

• Characteristics:
  • Straight Teeth: The teeth are straight and parallel to the axis of rotation.
  • Simplicity and Cost-Effectiveness: Easier and generally less expensive to manufacture than helical gears.
  • High Efficiency: Excellent efficiency, especially in well-aligned systems.
  • Radial Loads: Generate only radial forces (no axial thrust).
  • Noise: Can be noisier than helical gears, especially at higher speeds, due to the entire tooth engaging simultaneously ("impact loading").
• Applications: Widely used in a vast array of applications where efficiency and cost are primary considerations, and moderate noise levels are acceptable. This includes most general industrial automation, power tools, and many compact drive systems.

5. Helical Gear Planetary Gearboxes

Helical gears have teeth that are cut at an angle to the face of the gear, forming a helix.

• Characteristics:
  • Angled Teeth: Teeth are angled relative to the axis of rotation.
  • Smoother Engagement: The angled teeth engage gradually, from one end to the other, leading to quieter and smoother operation.
  • Higher Load Capacity: The gradual engagement means more teeth are in contact at any given time, allowing them to handle higher loads for the same gear size compared to spur gears.
  • Axial Thrust: Generate an axial thrust force along the shaft, which requires appropriate thrust bearings to manage.
  • Manufacturing Complexity: More complex and expensive to manufacture than spur gears.
• Applications: Preferred in applications where noise reduction, vibration suppression, and higher load capacities are critical. This includes high-precision robotics, high-speed machinery, automotive transmissions, wind turbine gearboxes, and heavy-duty industrial drives where smooth power transmission is paramount.

Choosing between spur and helical gear planetary gearboxes depends on the specific demands of the application regarding noise, load capacity, cost, and design complexity.

IV. Applications of Planetary Gearboxes

The unique combination of high torque density, compact size, high efficiency, and precision makes planetary gearboxes indispensable across a vast array of industries. Their versatility allows them to be seamlessly integrated into systems ranging from high-precision robotics to heavy-duty industrial machinery.

1. Industrial Automation

In the realm of industrial automation, planetary gearboxes are a cornerstone for achieving precise and reliable motion control. Their ability to deliver high torque with minimal backlash is critical for the accurate positioning and movement of automated machinery.

• Conveyor Systems: Provide the necessary torque and speed reduction for efficient and controlled movement of goods along production lines. Their compact size allows for integration into space-constrained conveyor designs.
• Packaging Machinery: Crucial for precise synchronization of various machine elements such as fillers, sealers, and labelers. The accuracy of planetary gearboxes ensures consistent product quality and high throughput.
• Printing Equipment: Essential for the precise alignment and movement of rollers and plates, ensuring high-quality print registration and consistent output in commercial printing presses.
• Material Handling: Used in automated guided vehicles (AGVs), automated storage and retrieval systems (AS/RS), and various lifts and hoists where controlled movement and high load capacity are required.
• Cutting and Welding Machines: Provide the exact positioning and feed rates necessary for intricate cutting paths and precise welding operations.

2. Robotics

Planetary gearboxes are almost synonymous with modern robotics due to their fundamental role in achieving the agility, strength, and precision demanded by robotic systems.

• Articulated Robots: Integrated into the joints of robotic arms (e.g., 6-axis robots) to provide the necessary torque for lifting and manipulating heavy loads while maintaining high positional accuracy for repeatable tasks.
• Collaborative Robots (Cobots): Their low backlash and smooth operation contribute to the precise and safe interaction required for cobots working alongside human operators.
• Service Robots: Used in mobile robot platforms for navigation and locomotion, as well as in manipulator arms for tasks in various service industries.
• Exoskeletons: Applied in powered exoskeletons for medical rehabilitation or industrial assistance, providing the necessary joint torque for human augmentation.

3. Aerospace

In the aerospace industry, the premium on weight reduction, reliability, and precision makes planetary gearboxes an ideal choice for numerous critical applications.

• Aircraft Actuators: Used in control surface actuators (flaps, ailerons, rudder), landing gear retraction systems, and thrust reversers, where high torque in a compact and lightweight package is essential for safety and performance.
• Helicopter Rotor Drives: While main rotor gearboxes are highly complex, planetary stages are often integral components due to their load-sharing capabilities and high reduction ratios, which are critical for transmitting power from the engine to the rotor.
• Satellite and Spacecraft Mechanisms: Employed in antenna pointing systems, solar array deployment mechanisms, and robotic arms on space vehicles, where precise movement in extreme environments is paramount.

4. Automotive

Planetary gearboxes are a fundamental component in many automotive applications, particularly in transmissions.

• Automatic Transmissions: The core of most automatic transmissions utilizes multiple planetary gear sets to provide various gear ratios without interrupting power flow. This allows for smooth and seamless gear changes.
• Hybrid Vehicle Drives: Used in power-split devices within hybrid powertrains to combine power from the internal combustion engine and electric motor, enabling efficient energy management.
• Electric Vehicle (EV) Drivetrains: While simpler than ICE transmissions, some EVs still use single or multi-stage planetary gearboxes for optimal motor speed reduction and torque delivery to the wheels.
• Limited-Slip Differentials: Some differential designs incorporate planetary gear sets to manage power distribution between wheels, enhancing traction.

5. Solar Tracking Systems

For maximizing energy capture, solar panels need to accurately track the sun's movement throughout the day. Planetary gearboxes are crucial for this precise motion.

• Single-Axis Trackers: Provide the drive for panels to tilt along one axis, optimizing their angle relative to the sun.
• Dual-Axis Trackers: Enable more complex movements, allowing panels to track both the azimuth (horizontal angle) and elevation (vertical angle) of the sun. The high precision and robustness of planetary gearboxes ensure reliable long-term operation in outdoor environments.

6. Wind Turbines

Planetary gearboxes are a critical component in the drivetrain of most multi-megawatt wind turbines, bridging the gap between the slow-rotating rotor and the high-speed generator.

• Main Gearbox: The primary application is within the main gearbox that connects the wind turbine's slow-spinning rotor blades (low RPM, high torque) to the much faster-spinning electrical generator (high RPM, lower torque). Planetary stages are highly efficient for this substantial speed increase and torque conversion.
• Pitch and Yaw Systems: Smaller planetary gearboxes are also used in the pitch systems (controlling blade angle) and yaw systems (orienting the nacelle into the wind) to provide the precise and powerful movements required for optimal energy capture and safety.

7. Packaging Machinery

As mentioned briefly under Industrial Automation, packaging machinery relies heavily on the precision and high cycle rates enabled by planetary gearboxes.

• Filling Machines: Ensure accurate volume dispensing.
• Sealing Machines: Provide consistent pressure and timing for sealing.
• Labeling Machines: Guarantee precise label placement at high speeds.
• Cartoning and Palletizing Machines: Deliver the controlled movements for forming, filling, sealing, and stacking packages. The low backlash and compact nature of planetary gearboxes are essential for the synchronized, high-speed operations characteristic of modern packaging lines.

8. Printing Equipment

The demand for high-quality, high-speed, and consistent output in the printing industry makes planetary gearboxes an ideal choice.

• Offset Presses: Used in the drive mechanisms for plate cylinders, blanket cylinders, and impression cylinders, requiring extremely precise registration and smooth rotation to prevent ghosting or misprints.
• Digital Presses: While differing in technology, elements like paper feed mechanisms and specific print head positioning systems can benefit from the compact and precise nature of planetary gearboxes.
• Flexographic and Gravure Presses: Similar to offset, these presses require accurate control of roller speeds and tensioning systems, where planetary gearboxes provide the necessary torque and precision.

The diverse applications highlight the adaptability and critical role of planetary gearboxes in modern industrial and technological advancements.

Planetary Gearbox Type Comparisons

Here are tables summarizing the key characteristics of different planetary gearbox types:

Planetary Gearbox Type Comparison: Single-Stage vs. Multi-Stage

Planetary Gearbox Gear Type Comparison: Spur Gear vs. Helical Gear

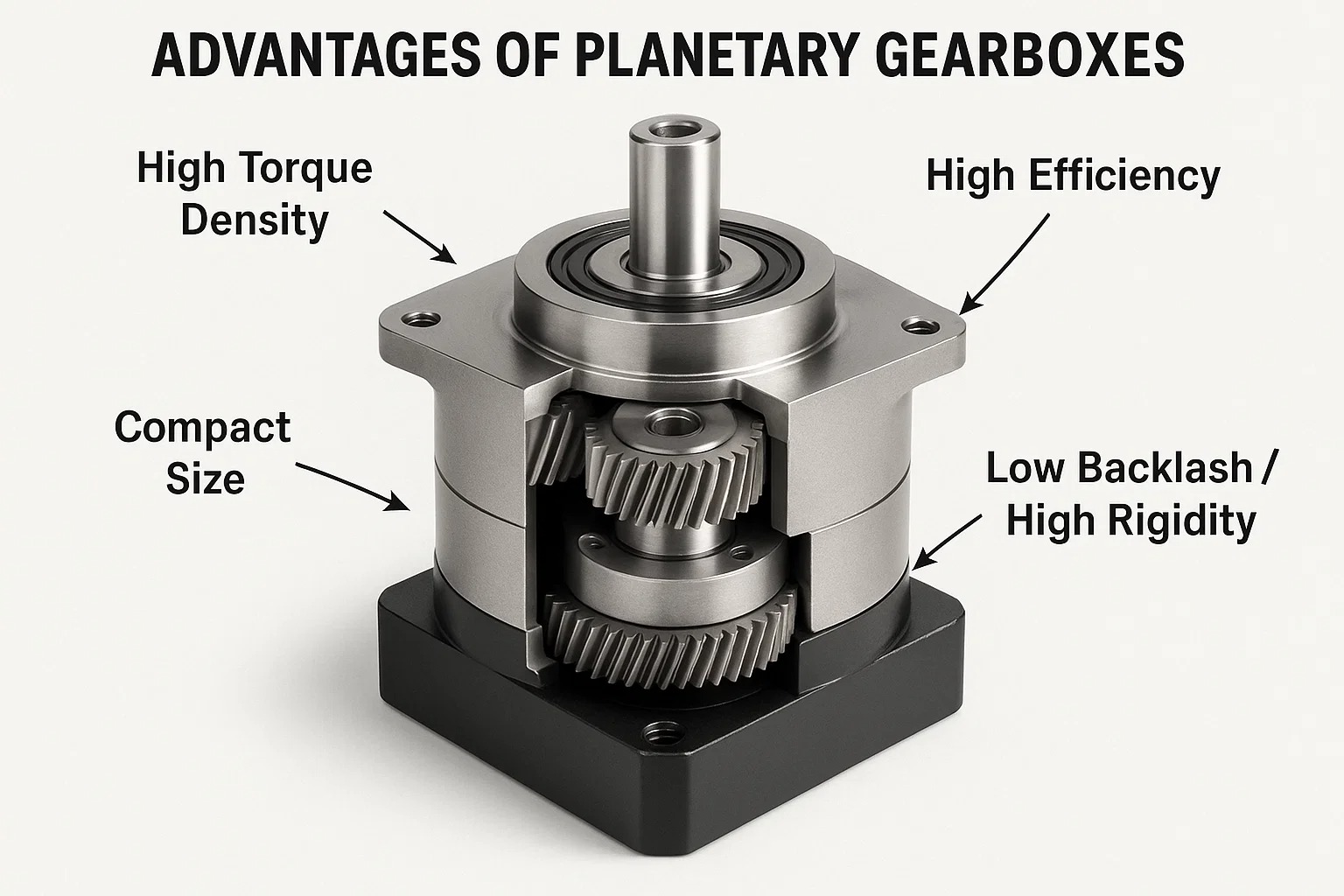

V. Advantages

The unique design and operational principles of planetary gearboxes grant them several significant advantages over other gear train configurations. These benefits are precisely why they are the preferred choice in a vast array of demanding applications where performance, space, and efficiency are paramount.

1. High Torque Density

One of the most compelling advantages of planetary gearboxes is their exceptional torque density . This refers to their ability to transmit a very high amount of torque relative to their physical size and weight.

• Load Sharing: The primary reason for this high torque density is the distribution of the load among multiple planet gears. In a conventional parallel shaft gearbox, the entire load is typically transmitted through a single mesh point between a driver and a driven gear. In contrast, in a planetary system, the torque is shared among all the planet gears (e.g., 3 or 4 planet gears), effectively multiplying the contact area transmitting the power.
• Stress Distribution: This load sharing means that each individual gear tooth experiences less stress compared to a single-mesh system handling the same total torque. This allows for smaller gears to transmit greater power, or for larger gears to transmit significantly higher power without increasing their physical dimensions proportionally.
• Compact Power: This inherent design characteristic makes planetary gearboxes ideal for applications where space is limited but high power transmission is required, delivering more power in a smaller envelope.

2. Compact Size

The compact size of planetary gearboxes is a direct consequence of their coaxial and concentric design.

• Coaxial Input/Output: Unlike traditional gearboxes where input and output shafts are often offset, planetary gearboxes typically have their input and output shafts aligned on the same axis. This coaxial arrangement streamlines machine design and integration, eliminating the need for complex shaft alignments or additional space for offset gears.
• Space Efficiency: The gears are arranged concentrically, with the planet gears orbiting inside the ring gear around the sun gear. This internal arrangement minimizes the overall footprint of the gearbox compared to external gear sets that require more space for parallel shafts and larger casings to accommodate the gear spans.
• Integration Benefits: This compact footprint is critically important in modern machinery, where miniaturization and efficient use of space are key design drivers. It allows for more complex functionality in smaller products, reduces overall machine size and weight, and simplifies installation.

3. High Efficiency

Planetary gearboxes are highly regarded for their impressive power transmission efficiency , often reaching up to 97% or more per stage.

• Rolling Contact: The primary reason for this high efficiency is the predominance of rolling contact between the gear teeth. Unlike some other gear types that involve a higher degree of sliding friction, the motion of the planet gears relative to the sun and ring gears is largely a rolling motion. Rolling friction is inherently lower than sliding friction, which minimizes energy losses due as heat.
• Balanced Forces: The symmetrical distribution of planet gears around the sun gear helps to balance radial forces within the gearbox. This reduces bending moments on shafts and bearings, leading to less friction and wear, and further contributing to higher efficiency and extended lifespan.
• Reduced Energy Consumption: Higher efficiency directly translates to less energy waste, lower operating temperatures, and ultimately, lower running costs for the equipment. This is a significant factor in energy-intensive industries and battery-powered applications.

In addition to these core advantages, the unique design of planetary gearboxes inherently contributes to several other beneficial characteristics:

• Low Backlash and High Rigidity: The stiff, load-sharing design with multiple meshing points inherently provides very low backlash and high torsional rigidity. This is crucial for applications requiring high precision and repeatable motion, such as robotics and CNC machinery.
• Quiet Operation: The load-sharing among multiple gears and the inherent balance of the rotating components lead to smoother power transmission and reduced noise and vibration compared to other gear types, especially at higher speeds.
• Durability and Long Lifespan: The robust construction and balanced load distribution minimize wear on individual gear teeth and bearings, leading to a longer operational lifespan and reduced maintenance requirements, even under heavy loads.

Summary of Planetary Gearbox Advantages

VI. Selecting the Right Planetary Gearbox

Choosing the right planetary gearbox is a critical step to ensure system performance, reliability, and cost-effectiveness. Incorrect selection can lead to equipment failure, inefficiency, or unnecessary expense. This process requires a comprehensive understanding of the application's demands and careful matching of the gearbox's various parameters.

1. Factors to consider: Torque, Speed, Gear Ratio, Accuracy, Environment

When selecting a planetary gearbox, the following core factors must be comprehensively evaluated:

• Torque:
  • Output Torque: This is one of the most crucial parameters. You need to clearly define the continuous operating torque and any potential peak torque or acceleration torque the application requires. The gearbox's rated output torque must be higher than the application's continuous operating torque, and its maximum momentary torque capacity must be able to withstand the application's peak or starting torques.
  • Starting Torque and Braking Torque: These transient torques are often higher than continuous torques, and the gearbox needs sufficient reserve capacity to handle them.
  • Rated Torque vs. Max Torque: Most manufacturers provide a rated output torque (typically the maximum torque that can be continuously transmitted at a specific speed and lifetime) and a maximum momentary torque (the absolute limit the gearbox can withstand for a short duration before potential damage). Always select based on the actual needs of your application.
• Speed:
  • Input Speed: This usually refers to the motor's output speed to the gearbox. Every planetary gearbox has an allowable maximum input speed , exceeding which can lead to overheating, increased noise, or reduced lifespan.
  • Output Speed: This is the final operating speed required by the application. It's derived by dividing the input speed by the gear ratio.
  • Continuous Operating Speed: The speed at which the gearbox can run for extended periods. High-speed operation increases heat generation.
• Gear Ratio:
  • The gear ratio acts as a bridge between the motor speed and the desired load speed. It is determined by dividing the input speed by the output speed.
  • When selecting a ratio, consider the motor's efficient operating speed range and the final speed required by the load.
  • If a very high reduction ratio is needed, a multi-stage planetary gearbox may be necessary. Different ratios will influence the gearbox's size, efficiency, and cost.
• Accuracy (Backlash):
  • Backlash: Refers to the angular play or "slop" in the gear train. It's measured as the amount of rotation at the output shaft when the input shaft is held fixed and rocked back and forth, typically expressed in arc-minutes . The smaller the backlash, the higher the precision of the gearbox's transmission.
  • Application Requirements:
    • High-precision applications (e.g., robotics, CNC machines, laser cutting): Require ultra-low backlash gearboxes (e.g., < 3 arc-min) to ensure accurate positioning and path tracking.
    • General industrial applications (e.g., conveyors, packaging machines): May have more relaxed backlash requirements (e.g., 5-15 arc-min).
  • Lower backlash typically implies more precise manufacturing and higher cost for the gearbox.
• Environment:
  • Operating Temperature: Gearboxes are designed for specific operating temperature ranges. Exceeding these limits can affect lubricant performance, seal life, and overall gearbox reliability. Extreme hot or cold environments require special designs or lubricants.
  • Protection Class (IP Rating): Based on the presence of dust, moisture, or corrosive agents in the working environment, select a gearbox with an appropriate IP rating (e.g., IP65, IP67) to protect internal components.
  • Vibration and Shock Loads: If the application involves high levels of vibration or periodic shock loads, a more robustly constructed gearbox with more durable bearings may be required.
  • Mounting Space: While planetary gearboxes are compact, ensure there is sufficient space for mounting and proper heat dissipation.

2. Service Factor

The Service Factor ( f s ​ ) is a crucial design multiplier used to adjust the gearbox's nominal torque rating to account for various uncertainties and demanding conditions present in the actual application. It ensures that the selected gearbox has sufficient load capacity margin for its intended operating life and reliability.

• Definition: The service factor is a corrective coefficient based on factors such as load type, shock level, daily operating hours, starting frequency, and ambient conditions.
• Calculation: The Rated Torque of the selected gearbox should be greater than or equal to the Required Application Torque × Service Factor ( f s ​ ) .
• Typical Service Factor Range: Usually between 1.0 and 2.0, or even higher.
  • 1.0 - 1.2: Uniform load, short daily operation, no shocks.
  • 1.2 - 1.5: Moderate shock loads, normal daily operation.
  • 1.5 - 2.0 : Heavy shock loads, continuous heavy-duty operation, frequent starts/stops.
• Importance: Manufacturers typically provide detailed service factor selection guidelines in their product catalogs. Neglecting the service factor can lead to gearbox overloading, premature wear, and failure.

3. Inertia

Inertia (Moment of Inertia, J ) refers to an object's resistance to changes in its rotational motion. In selecting planetary gearboxes for servo applications, inertia matching is a critical consideration.

• Load Inertia: The inertia of the mechanical parts driven by the gearbox.
• Motor Inertia: The inertia of the motor's rotor.
• Gearbox Inertia: The inertia of the gearbox's internal rotating components (planet gears, sun gear, etc.), usually expressed as inertia reflected to the input shaft.
• Inertia Matching Ratio: It's generally recommended to keep the ratio between the load inertia (reflected to the motor shaft) and the motor's rotor inertia within a certain range, typically 1:1 to 10:1 (Load Inertia / Motor Inertia). Optimal matching is often between 3:1 and 5:1.
  • Too High a Ratio: Can lead to motor control instability, sluggish response, overheating, or vibration.
  • Too Low a Ratio: May result in inefficient operation, as the motor isn't fully utilizing its capabilities.
• Calculation: Load inertia is reflected to the motor shaft by dividing it by the square of the gear ratio. For example, if the gear ratio is i and load inertia is J L ​ , the reflected load inertia at the motor shaft is J L ​ / i 2 .

4. Thermal Capacity

Thermal capacity refers to the maximum amount of heat a gearbox can dissipate continuously without its internal temperature exceeding permissible limits, given specific ambient conditions.

• Heat Sources: During operation, planetary gearboxes generate heat due to gear mesh friction, bearing friction, and lubricant churning losses. If this heat isn't dissipated effectively, internal temperatures will rise.
• Temperature Impact: Excessively high internal temperatures accelerate lubricant degradation, reduce seal lifespan, and can lead to premature wear or damage of gears and bearings.
• Importance:
  • For continuous heavy-duty, high-speed, or long-duration operations , thermal capacity is a crucial selection parameter.
  • Even if a gearbox meets torque capacity and inertia matching requirements, it may still overheat during continuous operation if its thermal capacity is insufficient.
• Heat Dissipation: Heat is typically dissipated through the gearbox casing's surface area via natural convection, or sometimes through forced cooling systems like fans. Manufacturers provide thermal capacity charts or data to help users evaluate this.

5. Matching the gearbox to the application

Selecting a planetary gearbox is an iterative process involving trade-offs and optimization of all the factors mentioned above.

1. Define Application Requirements: Clearly specify the required output torque, speed, accuracy, duty cycle, and environmental conditions.
2. Preliminary Calculations: Based on torque and speed needs, initially determine the required gear ratio.
3. Apply Service Factor: Adjust the torque requirement by applying the appropriate service factor based on load type and operating conditions.
4. Inertia Matching: Evaluate the load inertia and reflect it to the motor shaft via the gear ratio to ensure good matching with the motor's inertia.
5. Verify Thermal Capacity: Especially for continuous operation, ensure the selected gearbox's thermal capacity is sufficient to dissipate generated heat.
6. Accuracy Requirements: Based on the application's demand for positioning precision, choose a gearbox with an appropriate backlash class.
7. Environmental Suitability: Check the IP protection rating, operating temperature range, and other environmental specifications.
8. Size and Mounting: Confirm the physical dimensions of the gearbox fit within the available space and that the mounting style meets design requirements.
9. Consult Manufacturer: The final selection should integrate detailed technical specifications, performance curves, and selection guides provided by the manufacturer. Often, the manufacturer's engineers can offer expert advice tailored to your specific application.

Key Factors for Planetary Gearbox Selection Overview

VII. Maintenance and Troubleshooting

1. Regular Maintenance Tasks

Proactive and scheduled maintenance is far more cost-effective than reactive repairs. A typical maintenance regimen for planetary gearboxes should include:

• Visual Inspections: Regularly check the gearbox for any signs of external damage, loose fasteners, unusual vibrations, or oil leaks around seals and joints. A clean gearbox exterior also aids in efficient heat dissipation.
• Lubricant Level Check: Periodically inspect the lubricant level. For oil-lubricated units, this might involve a dipstick or sight glass. For grease-lubricated units, ensure the grease fitting is accessible and clear.
• Lubricant Condition Assessment: Check the color, clarity, and consistency of the lubricant. Any signs of discoloration (darkening), cloudiness (water contamination), or metallic particles indicate a need for immediate lubricant change and further investigation.
• Fastener Tightness Check: Over time, vibrations can cause mounting bolts and coupling fasteners to loosen. Regularly check and re-torque all critical bolts according to the manufacturer's specifications. Loose connections can lead to misalignment, increased wear, and noise.
• Cleaning: Keep the gearbox exterior free from dust, dirt, and debris. A build-up can act as an insulating layer, hindering heat dissipation and potentially leading to overheating.

2. Lubrication

Lubrication is arguably the single most critical factor in a planetary gearbox's longevity and performance. It serves multiple vital functions:

• Reduces Friction and Wear: Creates a protective film between moving parts (gears, bearings), preventing metal-to-metal contact.

• Dissipates Heat: Carries away heat generated by friction, helping to maintain optimal operating temperatures.

• Protects Against Corrosion: Forms a barrier against moisture and corrosive agents, preventing rust and degradation of internal components.

• Cleans: Helps to carry away wear particles, keeping the internal surfaces clean.

• Types of Lubricants:

  • Grease: Typically used for smaller, sealed, or low-speed gearboxes. It provides good sealing properties and can operate in various orientations. However, it offers less cooling capacity than oil.
  • Oil: Preferred for larger, higher-speed, or higher-power applications due to its superior cooling and cleaning capabilities. Different viscosities are available based on speed, temperature, and load.

• Lubrication Methods:

  • Grease Lubrication: Applied via grease fittings at specified intervals.
  • Oil Bath Lubrication: Gears partially submerged in an oil reservoir, splashing oil onto components.
  • Splash Lubrication: Similar to oil bath, but relies more on the motion of gears to splash oil.
  • Forced Lubrication (Oil Circulation): Used for large, high-power gearboxes, where oil is pumped through the system, filtered, and cooled.

• Lubrication Schedule: Always adhere strictly to the manufacturer's recommendations . This includes:

  • Initial Fill/Change: Often required after an initial break-in period.
  • Regular Change Intervals: Based on operating hours, temperature, load, and type of lubricant.
  • Top-ups: For systems that allow for it, maintaining the correct lubricant level is essential.

3. Vibration Analysis

Vibration analysis is a powerful predictive maintenance technique used to detect early signs of wear, damage, or misalignment within the gearbox, often long before audible noise or significant failure occurs.

• Purpose: To monitor the "health" of the gearbox by analyzing its unique vibration signature. Changes in this signature indicate a developing problem.
• How it Works: Sensors (accelerometers) are attached to the gearbox housing to measure vibrations. These measurements are then analyzed for specific frequencies and amplitudes that correspond to various internal components (e.g., specific gear teeth, bearings, shafts).
• What it Detects:
  • Bearing Wear: Increased vibration at specific frequencies related to bearing elements (balls/rollers, inner race, outer race, cage).
  • Gear Tooth Defects: Chipping, pitting, or wear on gear teeth create unique vibration patterns.
  • Misalignment: Shaft misalignment or mounting issues can cause characteristic vibrations.
  • Imbalance: Imbalanced rotating components can lead to increased vibration.
  • Looseness: Loose components can cause impact-like vibrations.
• Benefits:
  • Reduced Unplanned Downtime: Allows for scheduled repairs during planned maintenance windows, preventing catastrophic failures.
  • Optimized Maintenance Schedules: Shift from time-based to condition-based maintenance, reducing unnecessary interventions.
  • Extended Component Life: Addressing minor issues early prevents them from escalating into major problems.

4. Common Problems and Solutions

Troubleshooting a planetary gearbox often begins with careful observation of symptoms (noise, heat, leaks, reduced performance) and then systematically narrowing down the potential causes. Always consult the gearbox's technical manual first.

5. Backlash (as a problem)

While some backlash is normal for any gear train, an increase in backlash often indicates wear or damage.

• Causes:
  • Normal Wear and Tear: Over extended operating periods, tooth surfaces and bearing clearances can gradually increase.
  • Bearing Wear: Worn bearings allow shafts to move radially, increasing the effective clearance between gear teeth.
  • Gear Tooth Wear/Damage: Pitting, spalling, or excessive wear on gear teeth directly increases play.
  • Improper Assembly: Incorrectly torqued bolts or improper fitting during initial assembly or repair.
  • Overload/Shock Loads: Sudden, excessive loads can deform or damage gear teeth and bearings.
• Symptoms: Jerky or imprecise motion during direction changes, reduced positioning accuracy in precision applications, increased noise (clunking or knocking during reversals).
• Solutions:
  • For most high-precision, sealed planetary gearboxes, an increase in backlash usually means replacement of the gearbox as internal components are not designed for field adjustment or repair.
  • In some larger, serviceable industrial gearboxes, worn components (gears, bearings) might be replaceable by a qualified technician.
  • Ensure proper mounting and coupling alignment to rule out external causes.

6. Noise (as a problem)

Unusual noise from a planetary gearbox is a strong indicator of an underlying issue. The type of noise can often hint at the problem.

• Causes:
  • Insufficient or Contaminated Lubricant: Lack of lubricant film or abrasive particles in oil/grease leads to increased friction and grinding sounds.
  • Worn or Damaged Bearings: Produce whining, humming, or grinding noises, depending on the type and extent of wear.
  • Damaged Gear Teeth: Chipping, pitting, or broken teeth can cause knocking, clunking, or uneven grinding sounds.
  • Misalignment: Between the motor and gearbox, or gearbox and driven load, can cause excessive vibration and noise.
  • Overloading: Operating beyond rated capacity leads to increased stress, heat, and noise.
  • Resonance: If the operating frequency matches a natural frequency of the machine, it can amplify vibrations and noise.
• Symptoms: Whining, humming, grinding, clunking, knocking, rattling.
• Solutions:
  • Check/Replace Lubricant: Ensure correct type, level, and cleanliness.
  • Inspect for Wear: Listen to different areas, consider vibration analysis to pinpoint the source (bearings, gears).
  • Realign: Verify and correct any misalignment in the drive train.
  • Reduce Load: Ensure the gearbox is not operating beyond its continuous or intermittent torque ratings.
  • Isolation: Use vibration-damping mounts if noise is due to resonance or transmitted vibrations.

Common Planetary Gearbox Problems, Causes, and Solutions

VIII. Future Trends in Planetary Gearbox Technology

The field of power transmission is continuously evolving, driven by increasing demands for higher performance, greater efficiency, enhanced intelligence, and improved sustainability across industries. Planetary gearbox technology is at the forefront of this evolution, with several key trends shaping its future.

1. Advancements in Materials and Design

Innovation in materials science and design methodologies is pushing the boundaries of what planetary gearboxes can achieve:

• Advanced Materials:
  • Higher Strength-to-Weight Ratio Materials: Research into new steel alloys, ceramics, and composite materials aims to produce lighter yet stronger gears and housings. This is particularly crucial for aerospace, automotive (especially EVs), and robotics where weight reduction directly impacts performance and energy efficiency.
  • Improved Surface Treatments and Coatings: Novel surface hardening techniques (e.g., advanced nitriding, carburizing) and low-friction, high-wear-resistant coatings (e.g., DLC - Diamond-like Carbon) are being developed. These enhance the durability of gear teeth, reduce friction losses, and extend the operational life of components, even under extreme loads or in challenging environments.
  • Smart Materials: While still largely in research, the potential integration of smart materials that can adapt to changing conditions (e.g., self-lubricating, self-healing properties) could revolutionize gearbox maintenance and longevity.
• Optimized Gear Geometry and Tooth Design:
  • Advanced Simulation and Analysis: Modern computational tools like Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) enable engineers to precisely model and simulate gear meshing, stress distribution, and lubrication flow. This leads to optimized gear tooth profiles and geometries that minimize stress concentrations, improve load sharing, reduce noise, and maximize efficiency.
  • Topography Modification: Designing specific micro-topographies on tooth surfaces can improve lubricant film formation, reduce friction, and enhance wear resistance.
• Additive Manufacturing (3D Printing):
  • Complex Geometries: 3D printing allows for the creation of highly complex internal structures within gearboxes, such as integrated cooling channels, optimized lightweight designs, or even novel gear geometries that are impossible to produce with traditional machining methods.
  • Rapid Prototyping and Customization: This technology facilitates rapid prototyping of new designs and enables cost-effective production of highly customized planetary gearboxes for niche applications without extensive tooling costs.

2. Integration with Smart Technologies

The convergence of mechanical engineering with digital technologies is transforming planetary gearboxes into "smart" components, capable of self-monitoring and intelligent operation.

• Integrated Sensors: Future gearboxes will increasingly feature embedded sensors for real-time monitoring of critical parameters such as:
  • Temperature: At various internal points to detect overheating.
  • Vibration: To identify early signs of bearing wear or gear damage.
  • Speed and Torque: For performance tracking and overload detection.
  • Lubricant Quality: Sensors that can detect contamination or degradation of the lubricant.
• Artificial Intelligence (AI) and Machine Learning (ML):
  • Predictive Maintenance: AI algorithms analyze data from integrated sensors to predict potential failures before they occur, allowing for proactive maintenance and minimizing unplanned downtime. Machine learning models can identify subtle anomalies in operating patterns that human analysis might miss.
  • Performance Optimization: AI can analyze operating conditions and adjust parameters (if the system allows) to optimize efficiency or extend component life.
  • Anomaly Detection: Quickly flagging unusual operating conditions that deviate from normal behavior.
• Digital Twin Technology:
  • Virtual Replicas: Creating a virtual "digital twin" of a physical gearbox allows for real-time simulation, performance prediction, and virtual testing of different scenarios without impacting the actual physical unit.
  • Enhanced Diagnostics: The digital twin can process real-time data from the physical gearbox to provide highly accurate diagnostics and prognostics.

3. Condition Monitoring

Condition Monitoring (CM) is a cornerstone of smart gearbox technology, shifting maintenance strategies from reactive or time-based to predictive and condition-based.

• Definition: Condition monitoring involves continuously or periodically observing the state of a planetary gearbox and its components to identify changes that might indicate a developing fault or deterioration in performance.
• Methods:
  • Vibration Analysis: (As detailed in Section VII) Remains a primary tool, detecting issues like bearing wear, gear tooth defects, and unbalance.
  • Temperature Monitoring: Tracking internal and external temperatures to identify friction-induced heat, indicating potential lubrication issues or overloading.
  • Oil Analysis: Laboratory analysis of lubricant samples to detect wear particles, contamination (e.g., water, fuel), and lubricant degradation, providing insights into the health of internal components.
  • Acoustic Emission (AE): Listening for high-frequency sounds generated by incipient faults like crack propagation or surface damage.
• Benefits: Proactive maintenance, reduced unscheduled downtime, increased asset utilization, optimized repair schedules, extended component life, and enhanced operational safety.

4. IoT Integration

The Internet of Things (IoT) connects planetary gearboxes to broader digital ecosystems, enabling remote monitoring, data-driven decision-making, and seamless integration into smart factories (Industry 4.0).

• Connectivity: Gearboxes will increasingly be equipped with communication modules (e.g., Wi-Fi, cellular, Ethernet) to transmit sensor data to local gateways or cloud-based platforms.
• Remote Monitoring and Control: Operators and maintenance teams can monitor gearbox health, performance metrics, and receive alerts from anywhere, facilitating remote diagnostics and potentially even remote adjustments.
• Data-Driven Insights: The vast amounts of data collected enable sophisticated analytics, providing deeper insights into gearbox performance, identifying trends, optimizing operational parameters, and supporting continuous improvement initiatives.
• Integration with Enterprise Systems: IoT-enabled gearboxes can seamlessly integrate with enterprise resource planning (ERP) systems, manufacturing execution systems (MES), and computer-aided maintenance management systems (CMMS), creating a holistic view of factory operations and maintenance needs.

These trends collectively point towards a future where planetary gearboxes are not just mechanical components but intelligent, connected, and self-aware systems that contribute significantly to the efficiency, reliability, and automation of industrial processes.

Conclusion: Recap of Planetary Gearboxes Benefits and Uses

This in-depth guide has traversed the intricate world of planetary gearboxes, from their fundamental working principles to their diverse applications and profound advantages. We've explored how these ingenious mechanical systems, characterized by their central sun gear, orbiting planet gears, and outer ring gear, transform rotational power to meet the demanding requirements of modern industry.

We've seen that the core strength of planetary gearboxes lies in their ability to deliver exceptionally high torque density within a remarkably compact footprint . This unique design allows for the efficient distribution of load across multiple gear meshes, resulting in superior power transmission efficiency and minimal backlash , which is critical for precision control. These inherent benefits distinguish them from conventional gear solutions, making them a cornerstone of high-performance machinery.

The versatility of planetary gearboxes is evident in their widespread adoption across a multitude of sectors. From the precise movements of industrial automation and the articulated joints of robotics to the robust demands of aerospace and automotive transmissions , they are indispensable. Their role extends to the energy sector, powering wind turbines and ensuring the accurate positioning of solar tracking systems , and optimizing performance in packaging and printing machinery . Regardless of the application, planetary gearboxes consistently provide the necessary force, speed reduction, and accuracy to drive progress.

Furthermore, we've touched upon the continuous evolution of this technology, driven by advancements in materials, manufacturing techniques, and the integration of smart technologies. The future promises even more intelligent, connected, and efficient planetary gearboxes, equipped with sophisticated condition monitoring and IoT capabilities , pushing the boundaries of predictive maintenance and operational optimization.

In essence, planetary gearboxes are far more than just components for speed reduction or torque multiplication; they are vital enablers of precision, power, and efficiency in a world increasingly reliant on advanced machinery. As industries continue to demand higher performance in smaller, more reliable packages, the ingenuity and benefits of planetary gearboxes will ensure their indispensable role for decades to come. Our commitment as a leading manufacturer is to continue innovating, providing cutting-edge planetary gearbox solutions that meet the evolving needs of our customers and drive the future of mechanical power transmission.
